Second Hand Monofilament Filament Mop Yarn Twisting And Doubling Machine

CHANGZHOU UNITED WIN PACK CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Second Hand Monofilament Filament Mop Yarn Twisting And Doubling Machine from wholesalers

    Buy cheap Second Hand Monofilament Filament Mop Yarn Twisting And Doubling Machine from wholesalers
    • Buy cheap Second Hand Monofilament Filament Mop Yarn Twisting And Doubling Machine from wholesalers
    • Buy cheap Second Hand Monofilament Filament Mop Yarn Twisting And Doubling Machine from wholesalers
    • Buy cheap Second Hand Monofilament Filament Mop Yarn Twisting And Doubling Machine from wholesalers
    • Buy cheap Second Hand Monofilament Filament Mop Yarn Twisting And Doubling Machine from wholesalers
    • Buy cheap Second Hand Monofilament Filament Mop Yarn Twisting And Doubling Machine from wholesalers
    • Buy cheap Second Hand Monofilament Filament Mop Yarn Twisting And Doubling Machine from wholesalers

    Second Hand Monofilament Filament Mop Yarn Twisting And Doubling Machine

    Ask Lasest Price
    Certification : CE ISO
    Price : negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets/month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Second Hand Monofilament Filament Mop Yarn Twisting And Doubling Machine

    Second- Hand Monofilament/ Filament Yarn/ Mop Yarn Doubling Twisting Machine


    Descripition:

    The machine can twist different size of PP, PE, Polyester, Nylon, Cotton single strand or multi-strands twisted yarn, which is widely used in various fields, such as rope, net, twine, webbing, curtain fabrics, etc. The PLC control system makes it adjust technology, direction of twist, speed and molding shape easily. The machine has the characteristics of economic applicability.

    * Easy to operate and maintain

    * High efficiency and output

    * Low noise and power consumption


    Technical Parameters:

    Mould codeUW100UW140UW160UW200UW250UW250-AUW280UW-T250
    Spindle Number1841441007215424012
    Spindle Distance140mm180mm200mm280mm340mm340mm380mm380mm
    Ring DiameterΦ100×16.8mmΦ140×25.4mmΦ165×25.4mmΦ204×38.1mmΦ254×38.1mmΦ254×38.1mmΦ280×38.1mmΦ254×38.1mm
    Spindle Speed3000-5000r/min2000-3000r/min1800-2300r/min1800-2100r/min1800-2300r/min2000-4000r/min
    Twist DirectionS/Z
    Up-down Length200or 300mm200or 300mm300mm300mm300mm300mm400mm550mm
    Twist Range76~862t/m55~619t/m55~619t/m35~403t/m32~270t/m35~403t/m35~403t/m20~600t/m
    Operating MethodDouble sideDouble sideDouble sideDouble sideSingle sideDouble sideDouble sideSingle side
    Motor Power15KW18.5KW18.5KW22KW7.5KW22KW22KW15KW
    Overall size14.8×1.2×2m14.96×1.2×2m11.82×1.2×2m11.97×1.3×2.1m7.63×1.1×2.1m9.06×1.4×2.1m9.61×1.75×2.3 m5.8×1.6×2.3 m
    yarn countNe 21/2~18Ne 21/3~38Ne 21/5~45Ne 21/8~150Ne 21/8~170
    Fibre Denier250D~2000D1500D~5000D1500D~6000D600D-13000D650D~15000D
    PE

    36tex

    3~10

    36tex

    3~25

    36tex

    10~40

    36tex

    20~90

    36tex

    30~110

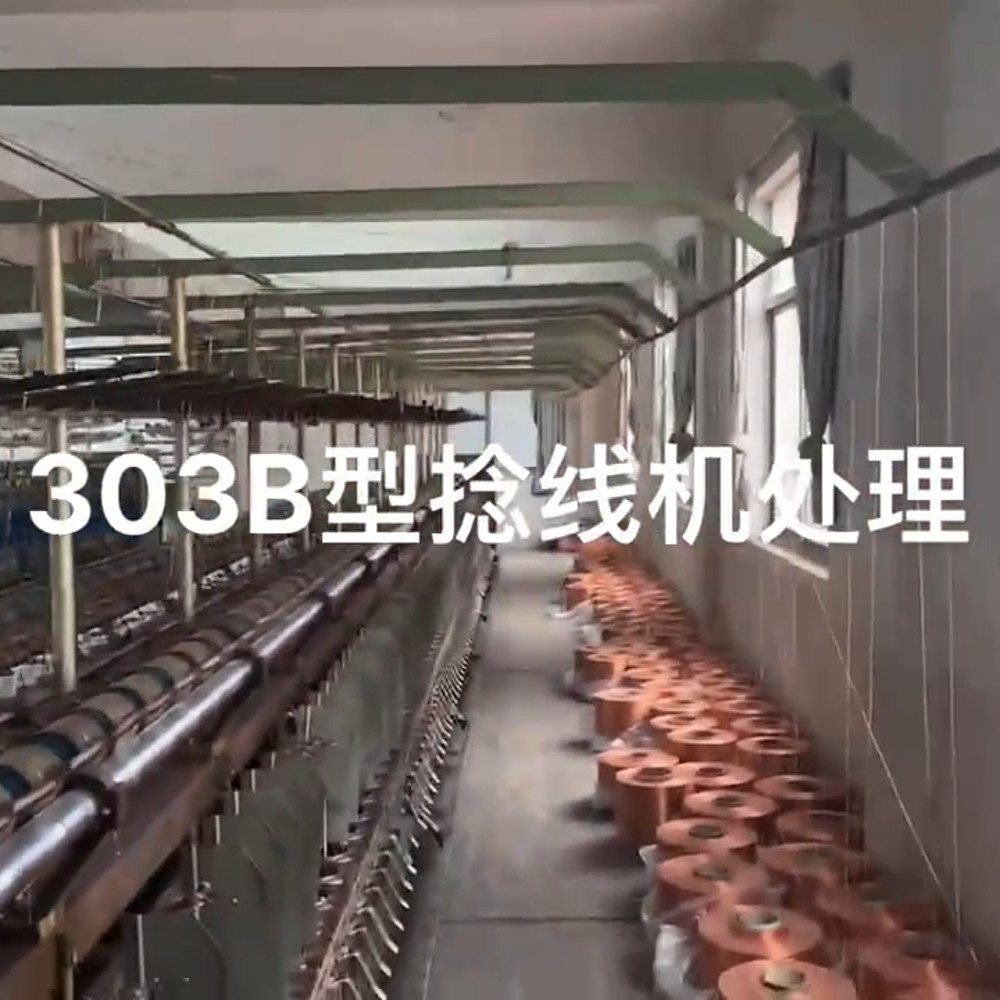

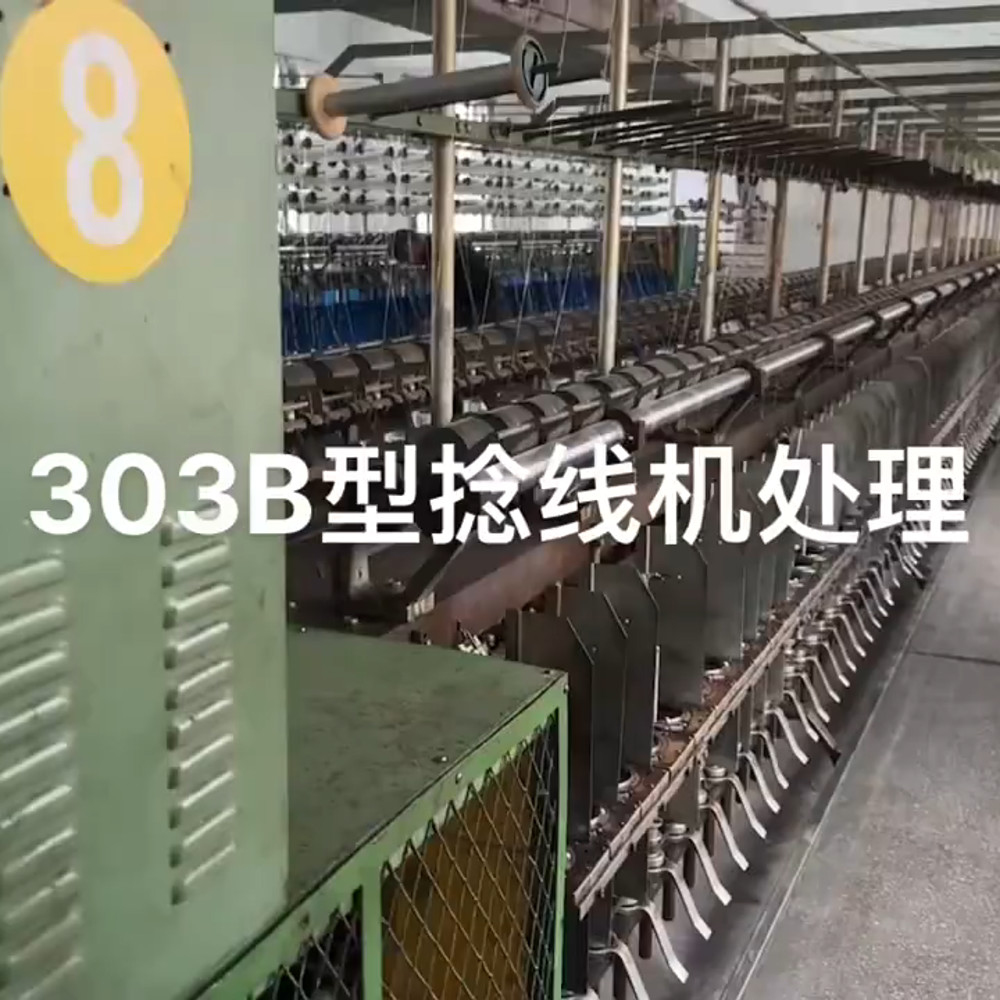

    Picture:

    Second Hand Monofilament Filament Mop Yarn Twisting And Doubling MachineSecond Hand Monofilament Filament Mop Yarn Twisting And Doubling MachineSecond Hand Monofilament Filament Mop Yarn Twisting And Doubling MachineSecond Hand Monofilament Filament Mop Yarn Twisting And Doubling Machine


    FAQ:

    1. Are you trading company or manufacturer?
    We are manufacturer, and also provide the business solution to all the friends.

    2. What's payment terms you accept?
    The buyer make the 30% deposite,the 70% balance will be paid by TT within 7 days before delivery or the buyer open 100% irrevocable L/C at sight as the appointed bank of the seller.

    3. What's the delivery time?
    The seller will arrange shipment within 90working days once confirm the order.

    4. How to install and debug the machine after arrival?
    We will provide instructions and installation videos. If the Buyer needs engineers to install in the local area, the buyer should pay USD150 per day for subsidy of engineers and afford the charge of daliy life(including the daliy meal ,traffic and hotel) in the locus of buyer and return tickets from China to User's factory.

    5. Does it easy to operate and what can i do if it doesn't work?
    First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing. And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us . And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.

    6. How long is your machine's warranty period?
    Seller warrants the products for 13 months from the B/L date.
